Plant Babysitter

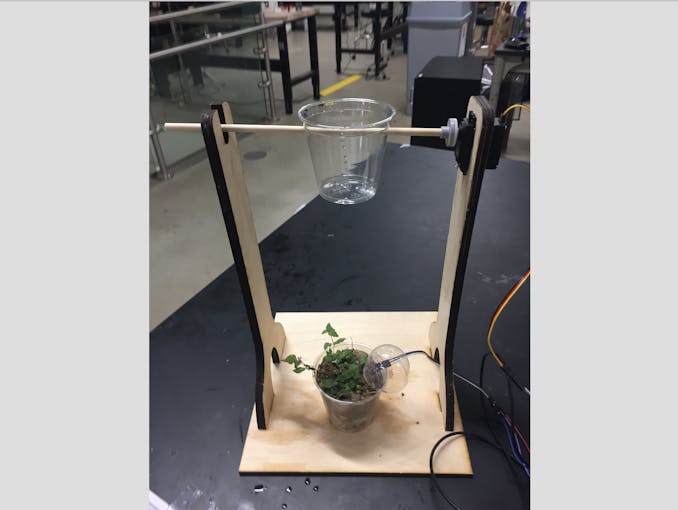

Never kill a plant again with this hands-free plant babysitter that quenches your plant's thirst so you don't have to!

EasyFull instructions provided499
Plant Babysitter

Things used in this project

Hardware components

PocketBeagle
BeagleBoard.org PocketBeagle
×1
Servos (Tower Pro MG996R)
×1
SparkFun Soil Moisture Sensor (with Screw Terminals)
SparkFun Soil Moisture Sensor (with Screw Terminals)
×1
Temperature Sensor
Temperature Sensor
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Breadboard (generic)
Breadboard (generic)
×1

Hand tools and fabrication machines

Laser cutter (generic)
Laser cutter (generic)
3D Printer (generic)
3D Printer (generic)

Story

Read more

Custom parts and enclosures

Plant Stand Base

Plant Stand Leg

Plant Stand Leg with Motor Cutout

Motor/Axle Adapter

Schematics

Fritzing Breadboard Schematic

Plant babysitter fritzing bb ar3lw69c53

Code

Plant Babysitter Code

Python
This code checks the moisture, reads the temperature, and waters the plant if necessary. The program will continue to run until you exit it (cntrl c). You may have to run the code using sudo.
# ------------------------------------------------------------------------
# Constants
# ------------------------------------------------------------------------
import time
# Peripheral path
GPIO_BASE_PATH               = "/sys/class/gpio" #sets up path to get to file
ADC_BASE_PATH                = "/sys/bus/iio/devices/iio:device0" #sets up path to get to file

# GPIO direction
IN                           = True #Gpio is receiving input (we don't have this)
OUT                          = False #Gpio is outputting (this is what we have)

# GPIO output state
LOW                          = "0" #basically off
HIGH                         = "1" #basically on

GPIO_VAL                     = (0, 5)  # gpio5 in tupple form

# Moisture Sensor ADC input
SensorReading                = "in_voltage6_raw" # AIN6   (this is the file name)
TempReading                  = "in_voltage5_raw" # AIN5

# ------------------------------------------------------------------------
# FUNCTIONS
# ------------------------------------------------------------------------
import os

def gpio_setup(gpio, direction, default_value=False):
    """Setup GPIO pin

      * Test if GPIO exists; if not create it
      * Set direction
      * Set default value
    """
    #This is borrowed from whac-a-mole code

    gpio_number = str((gpio[0] * 32) + gpio[1])
    path        = "{0}/gpio{1}".format(GPIO_BASE_PATH, gpio_number)

    if not os.path.exists(path):
        # "echo {gpio_number} > {GPIO_BASE_PATH}/export"
        print("Create GPIO: {0}".format(gpio_number))
        with open("{0}/export".format(GPIO_BASE_PATH), 'w') as f:
            f.write(gpio_number)

    if direction:
        # "echo in > {path}/direction"
        with open("{0}/direction".format(path), 'w') as f:
            f.write("in")
    else:
        # "echo out > {path}/direction"
        with open("{0}/direction".format(path), 'w') as f:
            f.write("out")

    if default_value:
        # "echo {default_value} > {path}/value"
        with open("{0}/value".format(path), 'w') as f:
            f.write(default_value)
# End def


def gpio_set(gpio, value):
    """Set GPIO ouptut value."""
    gpio_number = str((gpio[0] * 32) + gpio[1])
    path        = "{0}/gpio{1}".format(GPIO_BASE_PATH, gpio_number)

    # "echo {value} > {path}/value"
    with open("{0}/value".format(path), 'w') as f:
        f.write(value)
# End def


def adc_get(channel):
    """Get ADC input value.
    Returns:
        value (float):  Value will be between 0 (0V) and 1.0 (3.3V)."""
        #channel is the adc raw input that we defined as SensorReading
    with open("{0}/{1}".format(ADC_BASE_PATH, channel), 'r') as f:
        out = f.read()

    return float(float(out) / float(4096)) #returns the analog number in decimal form (between 0 and 1)
# End def


def turn_off_moisture_sensor():
    """Turn off the moisture sensor
    """
    gpio_set(GPIO_VAL, LOW)
# End def


def turn_on_moisture_sensor():
    """Turn on the moisture sensor
    """
    gpio_set(GPIO_VAL, HIGH)
# End def


def setup_sensor():
    """Setup all the pins for the reading.
    """
    gpio_setup(GPIO_VAL, OUT, LOW)
#End def

# ------------------------------------------------------------------------
# SEMI-DRIVERS?
# ------------------------------------------------------------------------

def read_moisture():
    """ set up stuff and read moisture level"""
    setup_sensor()
    turn_on_moisture_sensor()
    moisture = adc_get(SensorReading)
    turn_off_moisture_sensor()
    return moisture

#End def

def water_plant():
    """activates the servo motor to water the plant
    """
    import Adafruit_BBIO.PWM as PWM
    import time

    servo_pin = "P2_3"
    duty_min = 3
    duty_max = 14.5
    duty_span = duty_max - duty_min

    PWM.start(servo_pin, (100-duty_min), 20.0)
    duty = 4
    PWM.set_duty_cycle(servo_pin, duty)
    time.sleep(1.0)

    PWM.stop(servo_pin)
    PWM.cleanup()
    time.sleep(2.0)

    PWM.start(servo_pin, (100-duty_min), 20.0)
    duty = 1.5
    PWM.set_duty_cycle(servo_pin, duty)
    time.sleep(1.0)

    PWM.stop(servo_pin)
    PWM.cleanup()


#End def

def setup():
    setup_sensor()
#End def


def read_temp2():
    tempAnalog = adc_get(TempReading)
    tempMV = tempAnalog * 3300
    temp_c = (tempMV - 500) / 10
    temp_f = (temp_c * 9/5) + 32
    temperature = ('C=%d F=%d' % (temp_c, temp_f))
    return temperature
    time.sleep(1)

    return temperature
#End def

# ------------------------------------------------------------------------
# MAIN DRIVER
# ------------------------------------------------------------------------
def main():
    setup()

    while (True):
        moisture = read_moisture()
        temperature = read_temp2()
        print("Temperature: {0}".format(temperature))
        print("Moisture Level = {0}".format(moisture))
        if (moisture < 0.5):
            print("Moisture low, watering plant")
            water_plant()
        else:
            print("All is well!")

        time.sleep(60.0) #sleeps for 1 minute
#End def


main()
